Liner (Un - Cemented) 10°

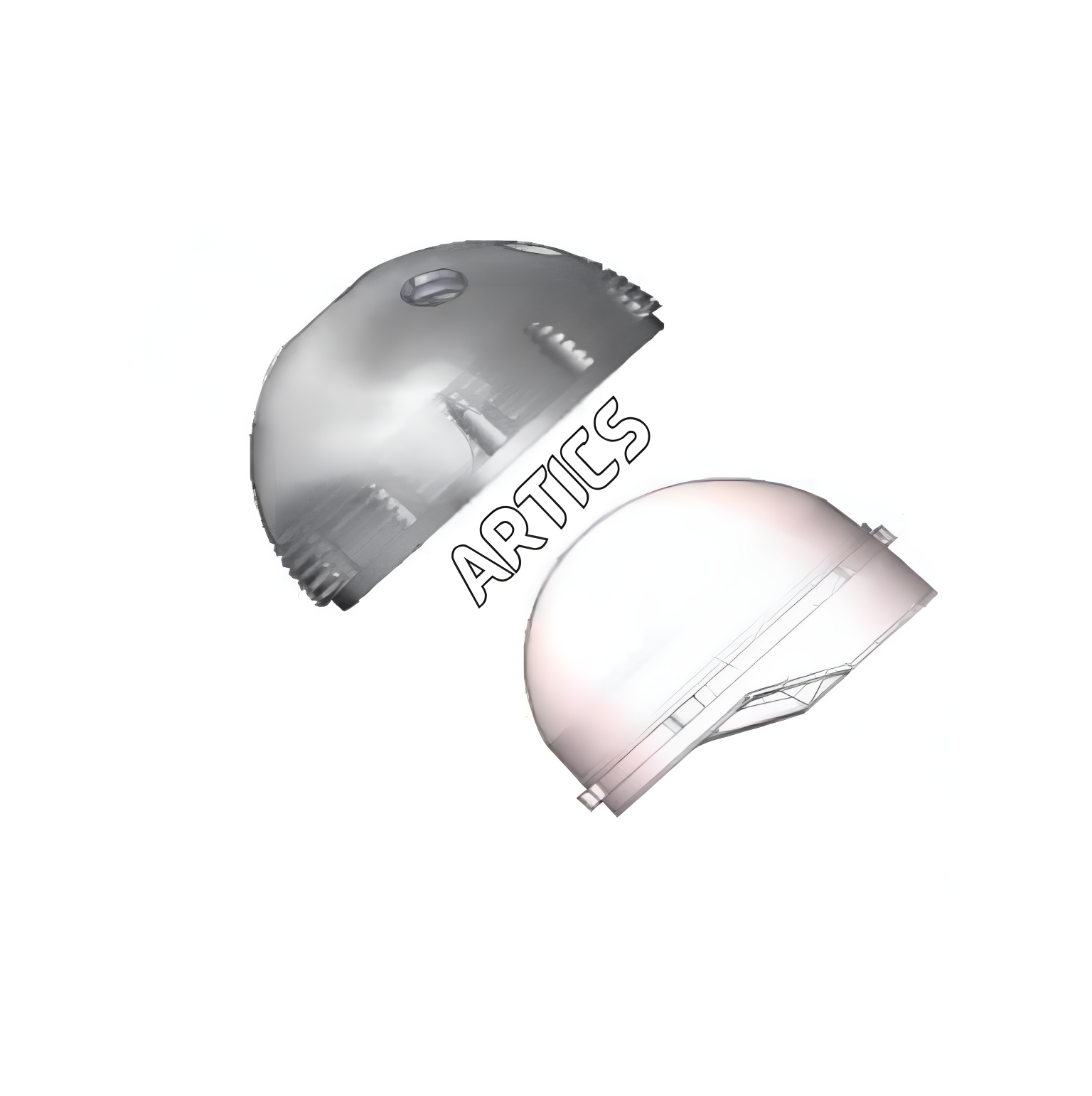

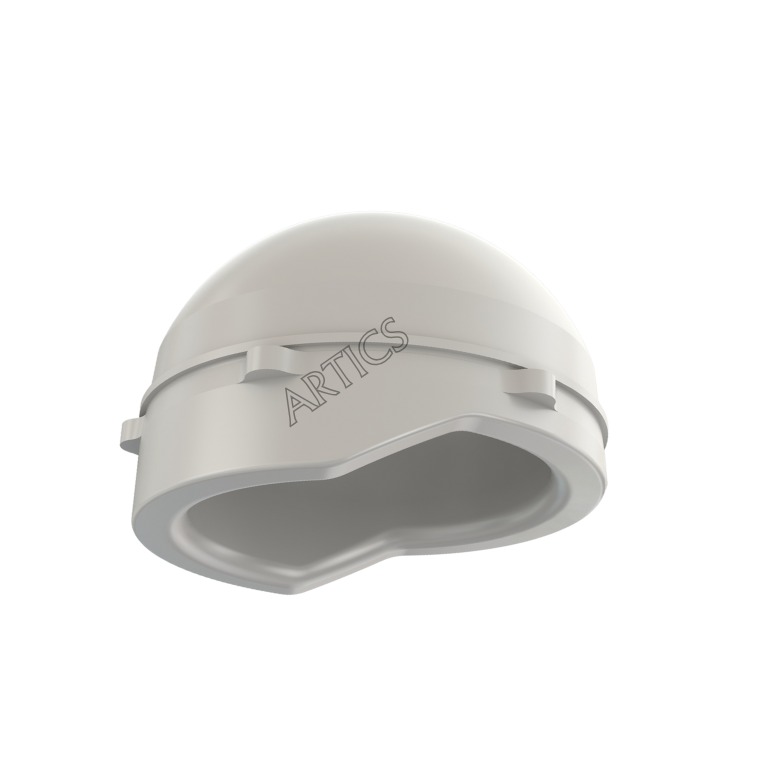

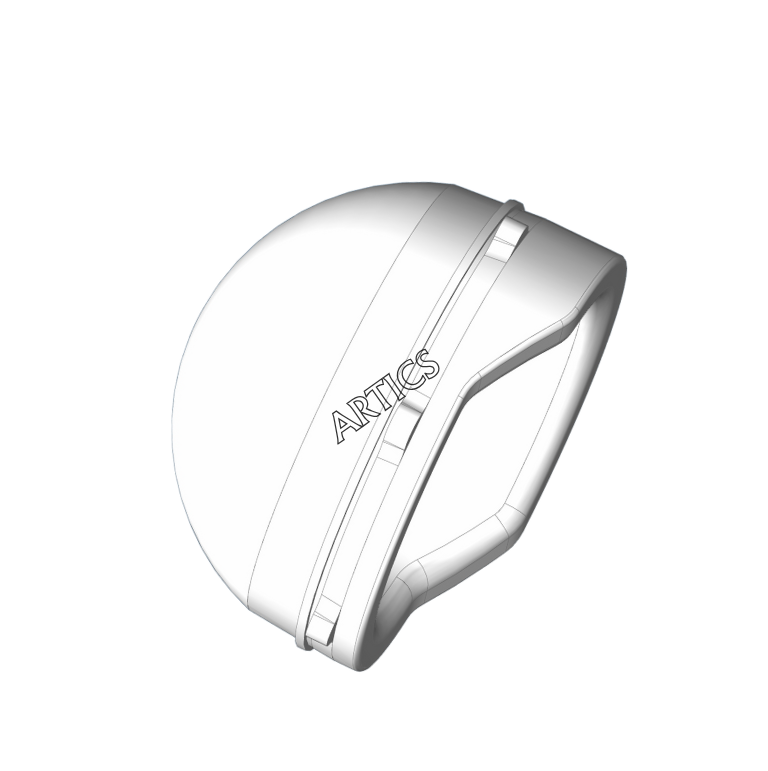

The ARTICS Liner (Un-Cemented) 10° is specially designed for un-cemented acetabular cups in hip replacement surgeries. Its 10° angled design helps the hip joint move naturally, improves range of motion, and reduces the risk of impingement. Made from high-quality UHMWPE, the liner offers excellent durability and smooth movement. The un-cemented design ensures a secure press-fit and encourages the bone to grow into the cup for long-term stability. Available in multiple sizes, it fits precisely to support each patient’s anatomy.
View PDF
| DESCRIPTION | |
| Material | XLPE / UHMWPE |
| Internal Head Dia. | 28 mm, 32 mm, 36 mm |
| Liner Dia. | 40 mm To 66 mm (Diff. 2 mm) |
| Posterior Lift | 10° Lift |
| DESCRIPTION | |
| Material | XLPE / UHMWPE |
| Internal Head Dia. | 28 mm, 32 mm, 36 mm |
| Liner Dia. | 40 mm To 66 mm (Diff. 2 mm) |
| Posterior Lift | 10° Lift |
| Internal Head Dia. | 28 mm | 32 mm | 36 mm | |||
| Liner Dia. | CAT. No. XLPE | CAT. No. UHMWPE | CAT. No. XLPE | CAT. No. UHMWPE | CAT. No. XLPE | CAT. No. UHMWPE |
| 40 mm | A5.THR6495-H | A5.THR6131-U | ||||
| 42 mm | A5.THR6496-H | A5.THR6132-U | ||||
| 44 mm | A5.THR6497-H | A5.THR6133-U | ||||
| 46 mm | A5.THR6498-H | A5.THR6134-U | ||||
| 48 mm | A5.THR6512-H | A5.THR6481-U | ||||
| 50 mm | A5.THR6513-H | A5.THR6482-U | ||||
| 52 mm | A5.THR6527-H | A5.THR6139-U | ||||
| 54 mm | A5.THR6528-H | A5.THR6140-U | ||||
| 56 mm | A5.THR6529-H | A5.THR6141-U | ||||
| 58 mm | A5.THR6530-H | A5.THR6142-U | ||||
| 60 mm | A5.THR6531-H | A5.THR6143-U | ||||
| 62 mm | A5.THR6532-H | A5.THR6144-U | ||||
| 64 mm | A5.THR6533-H | A5.THR6145-U | ||||
