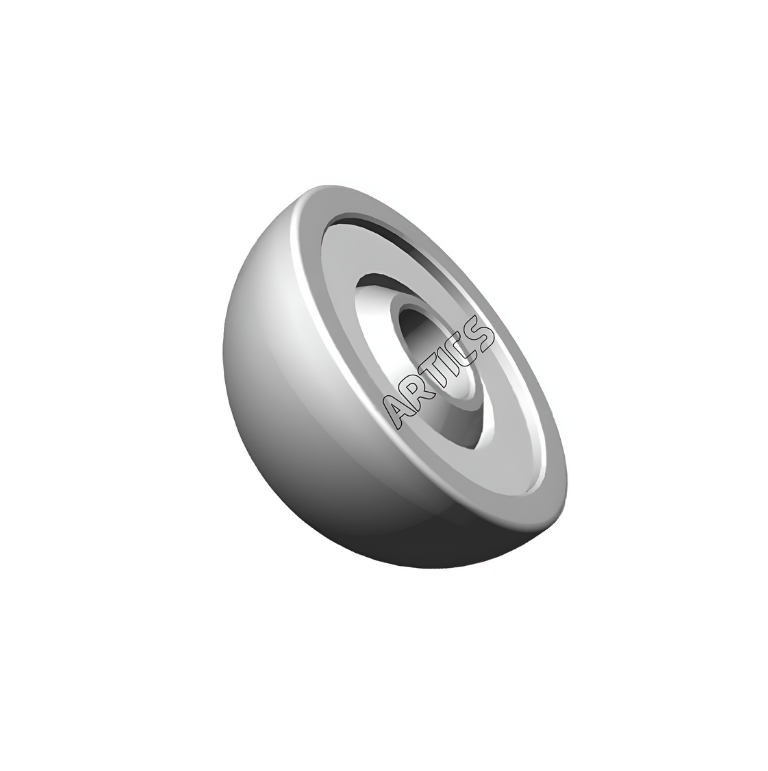

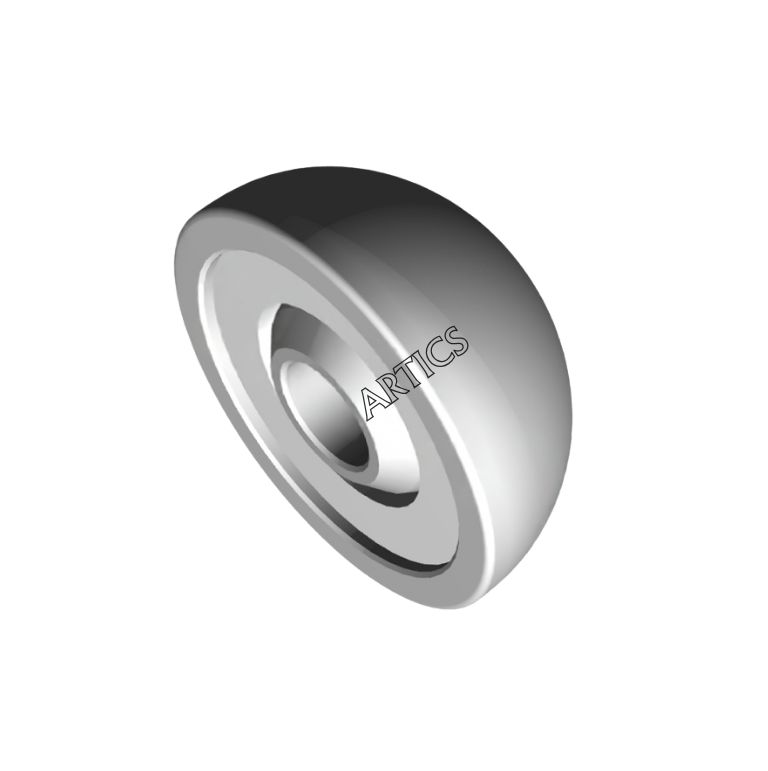

Modular Bipolar Cup with Head
The ARTICS Modular Bipolar Cup with Head is designed for hip arthroplasty, offering enhanced stability, flexibility, and patient mobility. The modular design allows surgeons to select and assemble the optimal combination of cup and head components for each patient, ensuring precise fit and biomechanical alignment. The bipolar mechanism features dual articulating surfaces – one between the femoral head and the inner cup, and the other between the outer cup and the acetabulum – which reduces friction, wear, and the risk of dislocation.
View PDF
| DESCRIPTION | |
| Material | S.S. |
| Size | 37 mm To 44 mm |
| Head Coverage | 180° |
| Internal Head Dia. | 26 mm |
| DESCRIPTION | |
| Material | S.S. |
| Size | 37 mm To 44 mm |
| Head Coverage | 180° |
| Internal Head Dia. | 26 mm |
| Internal Head Dia. | 26 mm | 26 mm | ||
| Size | +1.5 | +5.0 | +8.5 | +12.0 |
| 37 mm | A5.THR0144 | A5.THR0186 | A5.THR0228 | A5.THR0270 |
| 38 mm | A5.THR8050 | A5.THR8058 | A5.THR8066 | A5.THR8074 |
| 39 mm | A5.THR0146 | A5.THR0188 | A5.THR0230 | A5.THR0272 |
| 40 mm | A5.THR8052 | A5.THR8060 | A5.THR8068 | A5.THR8076 |
| 41 mm | A5.THR0148 | A5.THR0190 | A5.THR0232 | A5.THR0274 |
| 42 mm | A5.THR8054 | A5.THR8062 | A5.THR8070 | A5.THR8078 |
| 43 mm | A5.THR0150 | A5.THR0192 | A5.THR0234 | A5.THR0276 |
| 44 mm | A5.THR8056 | A5.THR8064 | A5.THR8072 | A5.THR8080 |
